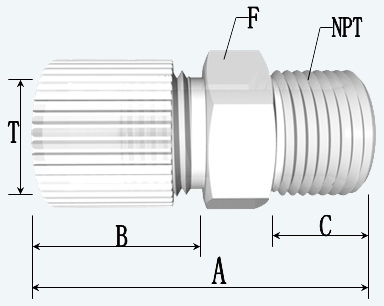

端接 |
尺寸 |
訂貨號 |
公稱壓力 |
A |
B |
C |
F |
入口/出口 |
T |
NPT |
PN |
擴口式 |
1/4 |
1/8 |
BASF040101 |
10MPa |
51 |
29.5 |
14 |
16 |
1/4 |
1/4 |
BASF040102 |
51 |
29.5 |
14 |
16 |
1/4 |
3/8 |
BASF040103 |
51 |
29.5 |
14 |
19 |
1/4 |
1/2 |
BASF040104 |
54.5 |
29.5 |
17 |
21 |
1/4 |
3/4 |
BASF040105 |
54.5 |
29.5 |
17 |
30 |
3/8 |
1/8 |
BASF040106 |
53 |
31.5 |
14 |
19 |
3/8 |
1/4 |
BASF040107 |
53 |
31.5 |
14 |
19 |
3/8 |
3/8 |
BASF040108 |
53 |
31.5 |
14 |
19 |
3/8 |
1/2 |
BASF040109 |
56 |
31.5 |
17 |
24 |
3/8 |
3/4 |
BASF040110 |
56 |
31.5 |
17 |
30 |
3/8 |
1 |
BASF040111 |
59.5 |
31.5 |
21 |
36 |
1/2 |
1/8 |
BASF040112 |
55.5 |
34 |
14 |
24 |
1/2 |
1/4 |
BASF040113 |
55.5 |
34 |
14 |
24 |
1/2 |
3/8 |
BASF040114 |
55.5 |
34 |
14 |
24 |
1/2 |
1/2 |
BASF040115 |
55.5 |
34 |
17 |
24 |
1/2 |
3/4 |
BASF040116 |
58.5 |
34 |
17 |
30 |
1/2 |
1 |
BASF040117 |
62 |
34 |
21 |
36 |
3/4 |
1/2 |
BASF040118 |
61.5 |
37 |
17 |
30 |
3/4 |
3/4 |
BASF040119 |
61.5 |
37 |
17 |
30 |
3/4 |
1 |
BASF040120 |
66.5 |
37 |
21 |
36 |
1 |
1/2 |
BASF040121 |
69 |
45.5 |
17 |
36 |
1 |
3/4 |
BASF040122 |
69 |
45.5 |
17 |
36 |
1 |
1 |
BASF040123 |
74 |
45.5 |
21 |
36 |
6 |
1/8 |
BASF040124 |
51 |
29.5 |
14 |
16 |
6 |
1/4 |
BASF040125 |
51 |
29.5 |
14 |
16 |
6 |
3/8 |
BASF040126 |
51 |
29.5 |
14 |
19 |
6 |
1/2 |
BASF040127 |
54.5 |
29.5 |
17 |
21 |
6 |
3/4 |
BASF040128 |
54.5 |
29.5 |
17 |
30 |
8 |
1/8 |
BASF040129 |
52 |
30.5 |
14 |
16 |
8 |
1/4 |
BASF040130 |
52 |
30.5 |
14 |
16 |
8 |
3/8 |
BASF040131 |
52 |
30.5 |
14 |
19 |
8 |
1/2 |
BASF040132 |
55.5 |
30.5 |
17 |
21 |
8 |
3/4 |
BASF040133 |
55.5 |
30.5 |
17 |
30 |
10 |
1/8 |
BASF040134 |
53 |
31.5 |
14 |
19 |
10 |
1/4 |
BASF040135 |
53 |
31.5 |
14 |
19 |
10 |
3/8 |
BASF040136 |
53 |
31.5 |
14 |
19 |
10 |
1/2 |
BASF040137 |
56 |
31.5 |
17 |
24 |
10 |
3/4 |
BASF040138 |
56 |
31.5 |
17 |
30 |
|
10 |
1 |
BASF040139 |
60 |
31.5 |
21 |
36 |
12 |
1/8 |
BASF040140 |
55.5 |
34 |
14 |
24 |
12 |
1/4 |
BASF040141 |
55.5 |
34 |
14 |
24 |
12 |
3/8 |
BASF040142 |
55.5 |
34 |
14 |
24 |
12 |
1/2 |
BASF040143 |
55.5 |
34 |
17 |
24 |
12 |
3/4 |
BASF040144 |
58.5 |
34 |
17 |
30 |
12 |
1 |
BASF040145 |
62 |
34 |
21 |
36 |
14 |
1/2 |
BASF040146 |
59.5 |
35 |
17 |
27 |
14 |
3/4 |
BASF040147 |
59.5 |
35 |
17 |
27 |
14 |
1 |
BASF040148 |
59.5 |
35 |
21 |
36 |
16 |
1/2 |
BASF040149 |
60.5 |
36 |
17 |
36 |
16 |
3/4 |
BASF040150 |
60.5 |
36 |
17 |
36 |
16 |
1 |
BASF040151 |
64.5 |
36 |
21 |
36 |
18 |
1/2 |
BASF040152 |
61.5 |
37 |
17 |
30 |
18 |
3/4 |
BASF040153 |
61.5 |
37 |
17 |
30 |
18 |
1 |
BASF040154 |
66.5 |
37 |
21 |
36 |
20 |
1/2 |
BASF040155 |
62.5 |
38 |
17 |
30 |
20 |
3/4 |
BASF040156 |
62.5 |
38 |
17 |
30 |
20 |
1 |
BASF040157 |
62.5 |
38 |
21 |
36 |
22 |
1/2 |
BASF040158 |
69 |
44.5 |
17 |
36 |
22 |
3/4 |
BASF040159 |
69 |
44.5 |
17 |
36 |
22 |
1 |
BASF040160 |
73.5 |
44.5 |
21 |
36 |
25 |
1/2 |
BASF040161 |
70.5 |
44.5 |
17 |
36 |
25 |
3/4 |
BASF040162 |
70.5 |
44.5 |
17 |
36 |
25 |
1 |
BASF040163 |
74.5 |
44.5 |
21 |
46 |
產品概述：
近年來，工程塑料的應用發展很快，在自控儀表專業中，用塑料管、管纜來代替紫銅管的趨勢越來越強烈，擴口式塑管接頭就是為適應塑料管纜而配備的管件。
技術指標：
|
配管規格 |
公稱壓力 |
適用介質 |
適用溫度 |
材料 |
|
in |
1/4″ |
10MPa |
非腐蝕性氣體 |
常溫 |
黃銅
（表面鍍鉻或鈍化） |
|
3/8″ |
|
1/2″ |
|
3/4″ |
|
1″ |
|
mm |
Φ6 |
|
Φ8 |
|
Φ10 |
|
Φ12 |
|
Φ14 |
|
Φ16 |
|
Φ18 |
|
Φ20 |
|
Φ25 |
安裝與應用
■本公司生產的單卡套管接頭產品，按標準進行了有關試驗，檢驗合格后，準予出廠。
■訂貨時請寫明訂貨號、規格、制造材料。超出本范圍的品種及其他規格，我公司可另行生產。
■切勿將零件與其他制造廠生產的相混用或互換。
